A Canonical Name record (abbreviated as CNAME record) is a type of resource record in the Domain Name System (DNS) used to specify that a domain name is an alias for another domain (the 'canonical' domain).
This can prove convenient when running multiple services (like an FTP server and a webserver; each running on different ports) from a single IP address. One can, for example, point ftp.example.com and www.example.com to the DNS entry for example.com, which in turn has an A record which points to the IP address. Then, if the IP address ever changes, one only has to record the change in one place within the network: in the DNS A record for example.com.
CNAME records must always point to another domain name, never directly to an IP address.
Details

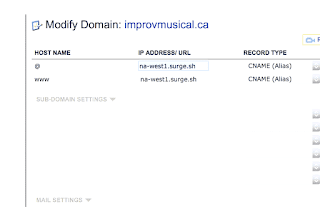

How to add A Record and CNAME DNS entries in GoDaddy domain to work with Shopify - In this video I will show you how to add or modify an A Record and a CNAME for a domain registered with GoDaddy. In this video, I use setting up Shopify as an example, but adding A Records...
DNS CNAME records are specified in RFC 1034 and clarified in Section 10 of RFC 2181.
CNAME records are handled specially in the domain name system, and have several restrictions on their use. When a DNS resolver encounters a CNAME record while looking for a regular resource record, it will restart the query using the canonical name instead of the original name. (If the resolver is specifically told to look for CNAME records, the canonical name (right-hand side) is returned, rather than restarting the query.) The canonical name that a CNAME record points to can be anywhere in the DNS, whether local or on a remote server in a different DNS zone.
For example, if there is a DNS zone as follows:
NAME TYPE VALUE -------------------------------------------------- bar.example.com. CNAME foo.example.com. foo.example.com. A 192.0.2.23
when an A record lookup for bar.example.com is carried out, the resolver will see a CNAME record and restart the checking at foo.example.com and will then return 192.0.2.23.
Possible confusion
With a CNAME record, one can point a name such as "bar.example.com" to "foo.example.com." Because of this, during casual discussion the "bar.example.com." (left-hand) side of a DNS entry can be incorrectly identified as "the CNAME" or "a CNAME." However, this is inaccurate. The canonical (true) name of "bar.example.com." is "foo.example.com." Because CNAME stands for Canonical Name, the right-hand side is the actual "CNAME."
This confusion is specifically mentioned in RFC 2181, "Clarifications to the DNS Specification." The left-hand label is an alias for the right-hand side (the RDATA portion), which is (or should be) a canonical name. In other words, a CNAME record like this:
bar.example.com. CNAME foo.example.com.
may be read as:
bar.example.com is an alias for the canonical name (CNAME) foo.example.com. A client will request bar.example.com and the answer will be foo.example.com.
Restrictions
- CNAME records must always be pointed to another domain name, never to an IP address.
- An alias defined in a CNAME record must have no other resource records of other types (MX, A, etc.). (RFC 1034 section 3.6.2, RFC 1912 section 2.4) The exception is when DNSSEC is being used, in which case there can be DNSSEC related records such as RRSIG, NSEC, etc. (RFC 2181 section 10.1)
- CNAME records that point to other CNAME records should be avoided due to their lack of efficiency, but are not an error. It is possible, then, to create unresolvable loops with CNAME records, as in:
foo.example.com. CNAME bar.example.com. bar.example.com. CNAME foo.example.com.
- CNAME records that are served by DNAME records may cause recursive loops in older resolvers.
- MX and NS records must never point to a CNAME alias (RFC 2181 section 10.3). So, for example, a zone must not contain constructs such as:
example.com. MX 0 foo.example.com. foo.example.com. CNAME host.example.com. host.example.com. A 192.0.2.1
- Domains that are used for e-mail may not have a CNAME record. In practice this may work, but can have different behavior with different mail servers, and can have undesired effects.
DNAME record
A DNAME record or Delegation Name record is defined by RFC 6672 (original RFC 2672 is now obsolete). A DNAME record creates an alias for an entire subtree of the domain name tree. In contrast, the CNAME record creates an alias for a single name and not its subdomains. Like the CNAME record, the DNS lookup will continue by retrying the lookup with the new name. The name server synthesizes a CNAME record to actually apply the DNAME record to the requested nameâ€"CNAMEs for every node on a subtree have the same effect as a DNAME for the entire subtree.
For example, if there is a DNS zone as follows:
foo.example.com. DNAME bar.example.com. bar.example.com. A 192.0.2.23 xyzzy.bar.example.com. A 192.0.2.24 *.bar.example.com. A 192.0.2.25
An A record lookup for foo.example.com will return no data because a DNAME is not a CNAME and there is no A record directly at foo.
However, a lookup for xyzzy.foo.example.com will be DNAME mapped and return the A record for xyzzy.bar.example.com, which is 192.0.2.24; if the DNAME record had been a CNAME record, this request would have returned name not found.
Lastly, a request for foobar.foo.example.com would be DNAME mapped and return 192.0.2.25.
ANAME record
Several managed DNS platforms implement a custom ALIAS or ANAME record type. These pseudo records are managed by DNS administrators like CNAME records, but are published and resolved by DNS clients like A records. ANAME records are configured to point to another domain, but when queried by a client, answer with an IP address. An advantage of ANAME records over CNAME records is that they are not restricted by RFC, so they can exist at the apex of a zone, and exist for domains that receive mail. An additional advantage of ALIAS records over ANAME records is speed; a DNS client requires at least two queries to resolve a ANAME to an A record to an IP address, while a DNS client requires only one query to resolve an ANAME to an IP address. The assumption is that the DNS server can resolve the A record and cache the requested IP address more efficiently and with less latency than its DNS clients can. The ANAME record type is currently a draft standard being considered by the IETF.
